Description

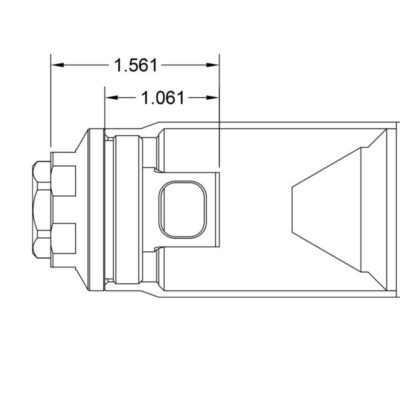

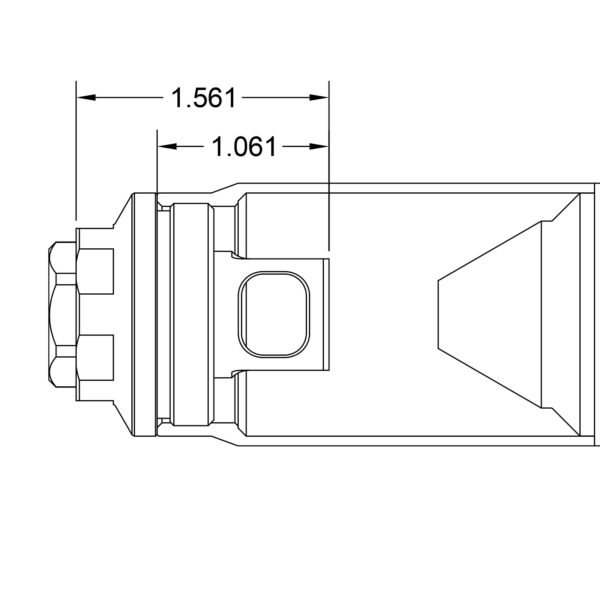

Weight and Length
| Thread Pitch | Weight | Length | Length Added |
| .280 1/2-28 | 2.3 oz | 1.73″ | 1.105″ |
| .375 1/2-28 | 2.26 oz | 1.73″ | 1.105″ |
| .375 5/8-24 | 1.74 oz | 1.73″ | 1.105″ |
| .50 5/8-24 | 1.71 oz | 1.73″ | 1.105″ |
| .375 14×1 LH | 2.35 oz | 1.73″ | 1.205″ |
| .375 9/16-24 | 2.05 oz | 1.73″ | 1.105″ |
| .50 11/16-24 | 1.36 oz | 1.73″ | 1.105″ |
| .375 SR25 | 2.01 oz | 1.85″ | 1.25″ |

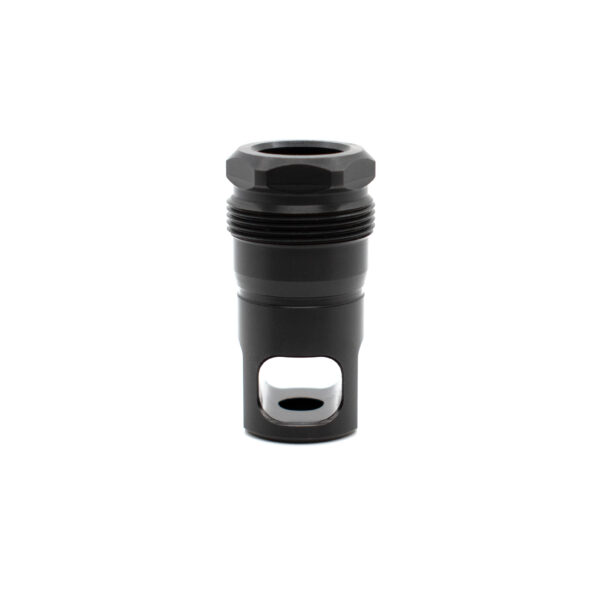

These fit the plan B type mounts. Always
use an alignment rod to ensure that the entire system is set up
correctly. Make sure all surfaces are cleaned and the muzzle device has
been torqued and Rockset to the barrel. Use on a Q can voids your
warranty, be warned.
Torque the muzzle device to approximately 15-25ft lbs. Make sure the
muzzle device is square against the shoulder. When setting the silencer
on the muzzle device, ensure that the threads and tapers are clean.
Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy. The nitride
finish does lead to a tighter seal, with that said, it is extremely
important to torque and rockset your muzzle device to the barrel
properly.
