Description

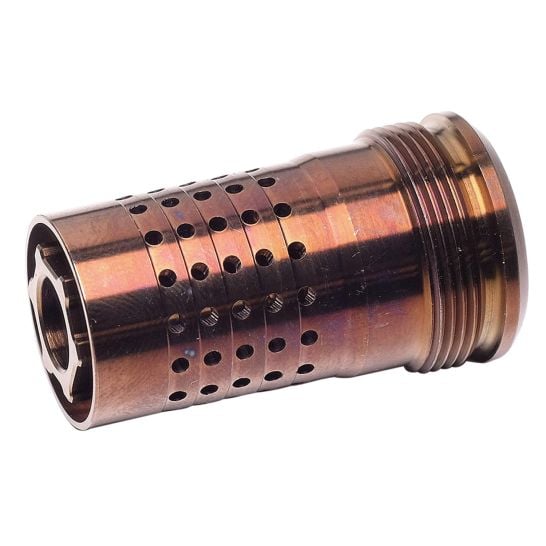

The Cherry Bomb by Q is a Quickie Fast-Attach muzzle brake compatible with the THUNDER CHICKEN and trash PANDA silencers by Q. It features our taper mount shoulder to align with our barrels and silencers, uses a 1/2 inch socket on the front for easy install and removal, and features 360° circumferential ports to alleviate the need for timing and shims. Backwards compatible with standard 90 degree shouldered barrels.
SPECS
WEIGHT: 2.0 oz.
OVERALL LENGTH: 1.64 inches
MATERIAL: 17-4 Stainless Steel
LENGTH ADDED TO BARREL: 0.8 inches
THREADS:
5/8-24 (7.62mm BORE) – CB-5824
1/2-28 (7.62mm BORE) – CB-1228
1/2-28 (9mm BORE) – CB-9MM-1228
MINIMUM SQUARE SHOULDER BARREL DIAMETER: .720
RECOMMENDED SQUARE SHOULDER BARREL DIAMETER: .750
DO NOT SHOOT A 9MM PROJECTILE THROUGH A 7.62 SILENCER!
RECOMMENDED TOOLS
We have seen a wide range of outside diameters for 1/2 inch sockets. 1/4 inch drive sockets are generally the best for Cherry Bombs, though we have 1/2 inch drive sockets that work as well.
**NOTE: The Cherry Bomb by Q is too short and NOT recommended for pinning and welding to a barrel.
